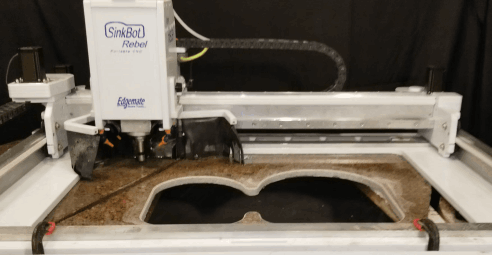

CNC SinkBot Rebel

Portable CNC for cutting sink holes. Using a incremental finger bit to radius the top edge and spiral cut the hole to full depth.

-- Easy to learn and operate CNC
-- Preloaded toolpath templates for simple programming
-- Inexpensive 3 1/4 hp spindle motor (1800kw)
-- Powerful faster cutting
-- Direct drive spindle
-- Dust free, no templates
-- Patent Pending

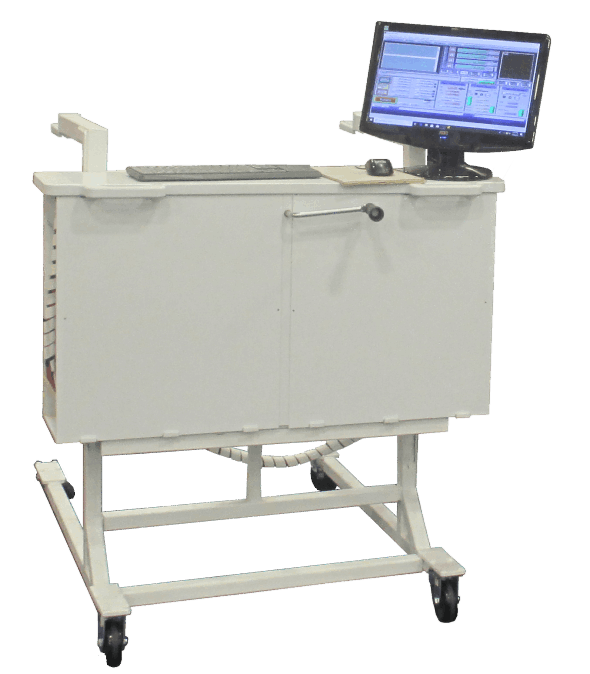

SinkBot Control-Work Station

Stop lifting fragile large or L-shaped stones out of stationary sink machines. Use the SinkBot's control-work station to lift and transport the SinkBot Rebel to the workpiece on your polishing bench.

-- SinkBot's cabinet protects
- Machine Control
- Fanless Computer
-- Wireless keyboard for zeroing bit
-- Touchscreen Monitor (opt)
-- Auto spindle shutoff (opt)
-- Auto water shutoff (opt)

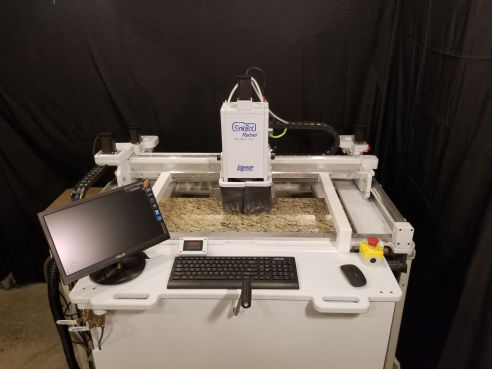

SinkBot Rebel on the control/lifing cart

SinkBot Rebel carried and placed on the stone with the conrol/lifting cart

Ready for polish with a milled 1/8"R eased edge

Ready for polish with a milled 1/8" radius eased edge with a faucet hole with no toolchanges

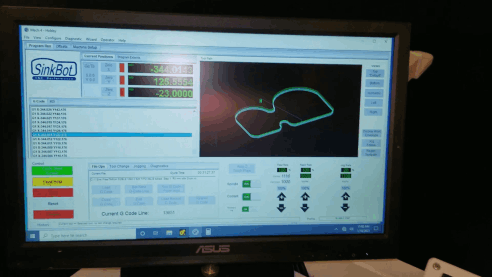

Rebel's optional touchscreen monitor

Rebel's optional touchscreen monitor

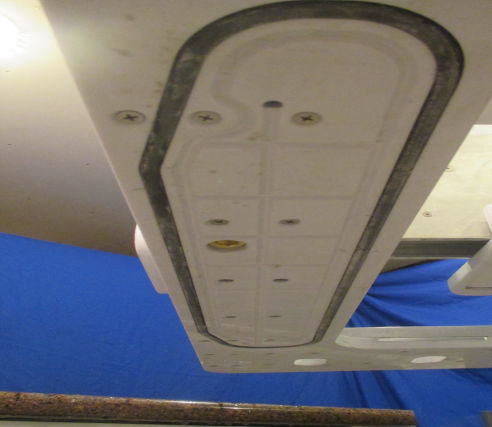

SinkBot Rebel vaccum hold-down pod

SinkBot Rebel vaccum
hold-down pod

Free up your labor and let SinkBot cut your sink holes
Easy to operate CNC
Rebel movements are auto rinsed and lubricated for longevity
Front & back clamping bars to hold SinkBot down
Front clamping bar and vacuum hold down for islands
Center waterfeed 3 1/4 hp spindle (1800kw) made in the USA
No toolchange needed for the faucet hole after cutting the sink hole
Splash shield with hinged arms allows for easy access to cutter
Clamping the machine to the stone combined with a small bridge length guarantees the Z-height is perfectly indexed to stone's surface for profiling bits
Well engineered splash shield prevents stone spray, minimizing cleaning and maintenance while allowing access for toolchanges
Aluminum & 19mm plastic structure with stainless sealed bearings for all movements
