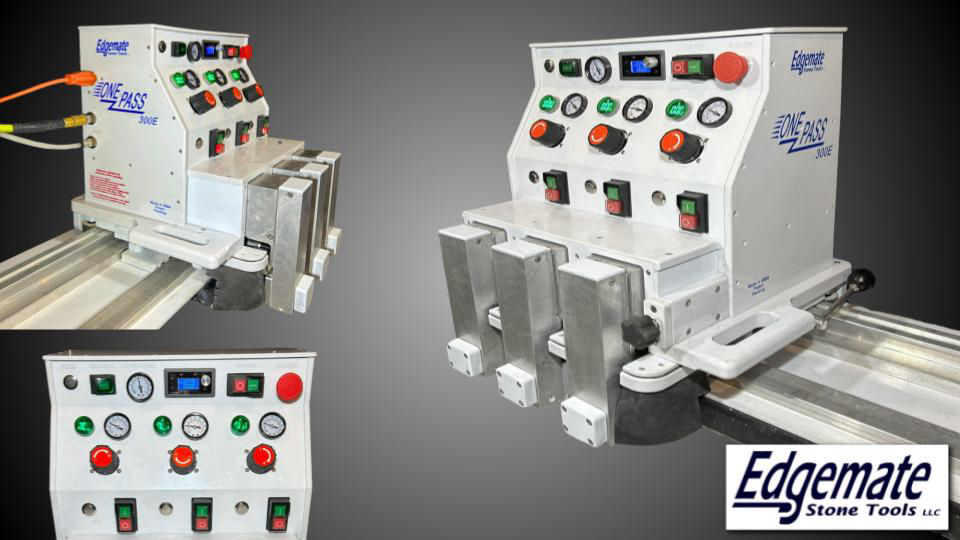

OnePass 300E

Edgemate OnePass 300E

Fully Automated Portable Line Polisher for flat edges. Using standard 3-step polishing pads.

-- Variable speed 20-40 inches per minute
-- Fully automated pad engagement / disengagement
-- Under 70 lbs for portablity to polish your oversize tops
-- Auto shut-down after finishing the edge
-- Polish your L-shaped and Batwing tops
-- L-shaped offset seamed tops
-- Dust free, under 2 gpm water usage
-- 12 foot and 6 foot tracks standard
-- Patent Pending

Eliminate the need to lift, move, and rotate large, fragile countertops into traditional line polishers. With the workpiece on a bench, a single worker using the OnePass can polish your oversized pieces.

Specifications
-- Power: 120 volts 15 amps
-- Water Usage: < 2 gpm
-- Air consumption: 90 psi @ minimal cfm
-- Weight: OnePass 300E 70 lbs
12 foot track 35 lbs
6 foot track 17 lbs
-- Feedrate 0-50 ipms

VIDEO

SinkBot Rebel on the control/lifing cart

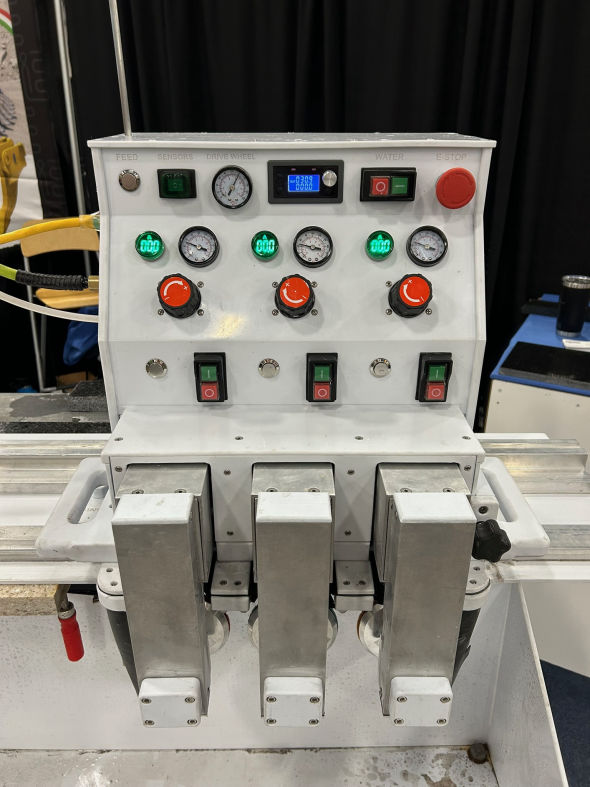

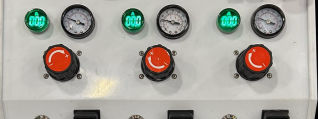

Each spindle has an ammeter for the proper spindle load and an air regulator for indivdual pad pressures

Placement of the Start and Stop track markers defines the length of the polished edge

PLC control knob allows for an easy on the fly feedrate change with a digital readout in inches per minute

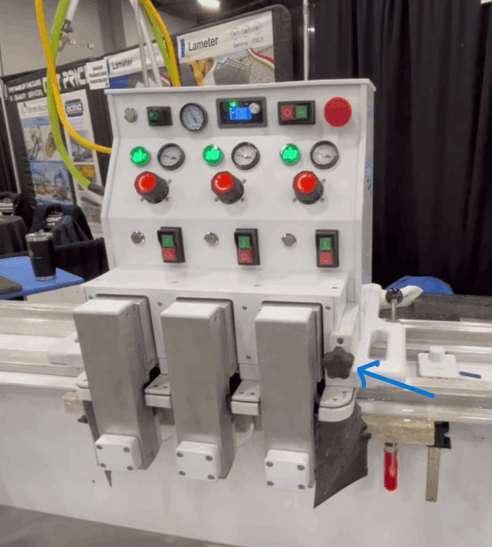

Use a cup wheel on the right spindle with a hard stop to straighten or clean up a poorly cut edge.

Free up your labor and let the OnePass polish your flat edges
Easy and very simple to operate
Bring the Onepass to your countertops — eliminate the need for lifting and rotating the tops into a traditional line polisher
Aluminum & 19mm plastic structure with stainless sealed bearings for all movements for years of durability
Exchange Pad 1 and 3 and reverse the Onepass direction to polish both sides from the inside corner of a L-shaped top
Use a cup wheel on the right spindle with a hard stop to fix, straighten, or clean up a poorly cut edge.
Made in the USA
Well engineered splash shield prevents stone spray, minimizing cleaning and maintenance while allowing access for pad changes
